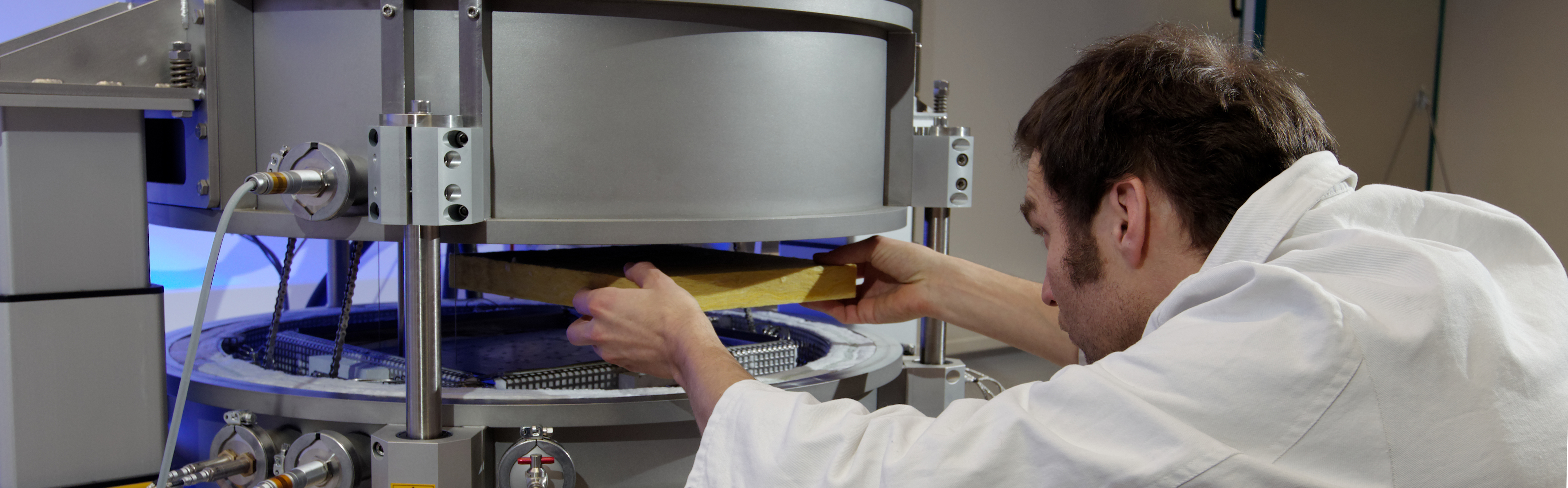

Messung im Plattenapparat
© Fraunhofer IBP
Messung von Wärmeleitfähigkeit, Wärmedurchlasswiderstand und Wärmedurchgangskoeffizient im Plattengerät.

© Fraunhofer IBP

Messung im Plattenapparat
© Fraunhofer IBP
Messung von Wärmeleitfähigkeit, Wärmedurchlasswiderstand und Wärmedurchgangskoeffizient im Plattengerät.

© Fraunhofer IBP

Messung im Plattenapparat
© Fraunhofer IBP
Messung von Wärmeleitfähigkeit, Wärmedurchlasswiderstand und Wärmedurchgangskoeffizient im Plattengerät.

© Fraunhofer IBP

Messung im Plattenapparat
© Fraunhofer IBP
Messung von Wärmeleitfähigkeit, Wärmedurchlasswiderstand und Wärmedurchgangskoeffizient im Plattengerät.

© Fraunhofer IBP

Messung im Plattenapparat
© Fraunhofer IBP
Messung von Wärmeleitfähigkeit, Wärmedurchlasswiderstand und Wärmedurchgangskoeffizient im Plattengerät.

© Fraunhofer IBP

Thermal Characteristics Test Laboratory

D-PL-11140-11-04
Nobelstr. 12, 70569 Stuttgart, Germany


Our services

Official testing, feasibility studies, aptitude and quality tests of building materials, building components for example for insulating materials, masonry, windows, doors. Experimental determination and calculation of thermal and energy transmittance, thermal conductivity.

Downloads



© Fraunhofer IBP

More Information

Expand all Close all

Standard tests

Standard tests

Thermal conductivity, thermal resistance and thermal transmission coefficient of primarily homogeneous building materials and building components as well as the determination of referential moisture

  • insulating materials, building slabs according to DIN 52612/DIN EN 12664, DIN EN 12667/DIN EN 12939
  • double glazing, web plates according to DIN 52619-2/DIN EN 674 in the guarded hot plate apparatus

Thermal conductivity by the guarded hot plate apparatus

flyer
  • pipe insulation

Thermal conductivity of concentric pipe insulation

flyer
  • determination of the referential moisture or water absorption of building materials according to DIN 52620, DIN EN 12087


Thermal resistance and thermal transmission coefficient of non homogeneous building components (hot box method)

  • masonry according to DIN 52611-1/DIN EN 12412
  • windows, flat windows on pitched roofs according to DIN 52619-1/EN ISO 12567-1 and EN ISO 12567-2
  • roof elements, façade elements, doors according to DIN 52611/DIN EN 12412-1
  • frame sections according to DIN 52619-3/DIN EN 12412-2
  • shutter boxes according to DIN 52619-1/DIN EN ISO 12567/prEN 12412-4

Thermal resistance and thermal transmittance in the hot box

flyer

Air permeability, watertightness, resistance and mechanical strain of windows, façade elements etc.

  • joint permeability (a-value) according to DIN EN 42/DIN 18055, air permeability according to DIN EN 1026/DIN EN 12207

Air permeability by test facility for impermeability

flyer
  • watertightness according to DIN EN 86/DIN 18055, watertightness according to DIN EN 1027/DIN EN 12208

Water tightness against driving rain by test facility for impermeability

flyer
  • wind resistance according to Din EN 77/DIN 18055, wind resistance according to DIN EN 12211/DIN EN 12210

Resistance to wind load by test facility for impermeability

flyer

Heat dissipation, electrical resistance and dissipation of electrostatic charges of floor coverings

  • heat dissipation according to DIN 52614, electrical resistance according to DIN 53596, dissipation of electrostatic charges according to DIN 51953

Heat dissipation of floors

flyer

Additional mechanical, thermal and hygric tets

  • compressive stress and tensile strength, tear strength
 Testing machine for mechanical material and component characteristics
  • freeze-thaw cycling
 flyer
  • thermal deformation resistance

  • length related flow resistance

  • moisture absorption by vapour diffusion in the temperature gradient

  • condensation on surfaces or in the interior of building components (windows, glazing and façade elements, etc.)

  • gross density and moisture content of building materials

  • thermography of building components or façade elements according to ISO 6781

  • expertise, assessment of damage
