Sound insulation in a façade test laboratory
Acoustics
Sound Insulation Measurements for Facades and Exterior Building Components

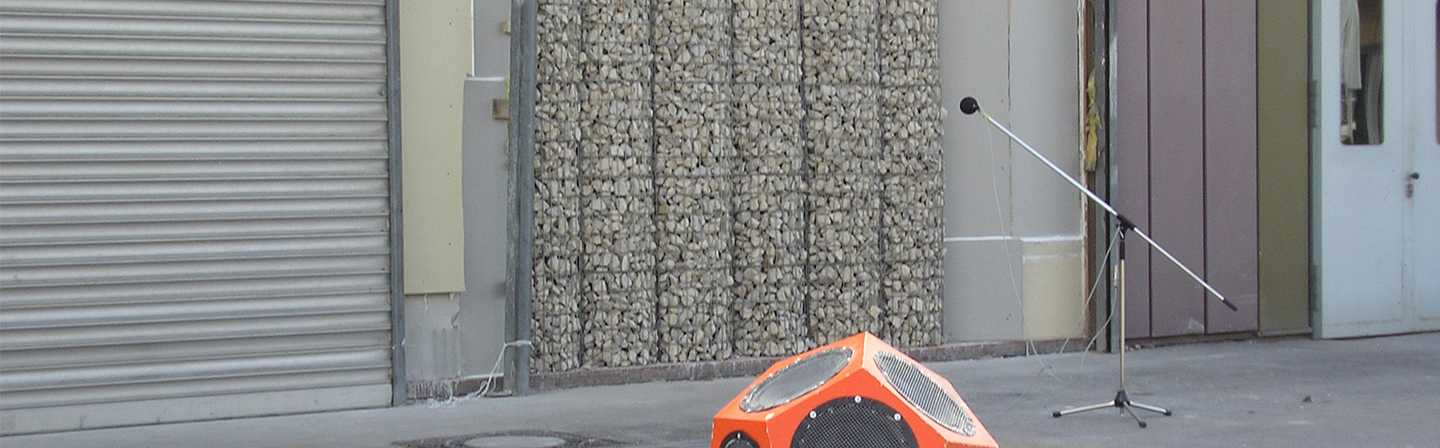

The facade test facility P1 at Fraunhofer IBP meets the requirements of DIN EN ISO 10140-5:2021. The test stand is vibration-isolated, with a surrounding joint effectively suppressing flanking transmission between the source and receiving rooms. Its versatile test opening allows for the measurement of facade elements, windows and sliding doors, as well as complex mock-up facades with installations. Cutting-edge state-of-the-art measurement technology ensures precise assessment of sound insulation under realistic conditions, including dodecahedron loudspeakers in the test rooms and circularly moving microphones in the receiving room. The test stand is designed to accommodate even large facade elements, which can be delivered and installed using a truck-mounted crane. This makes it ideal for innovative development projects and quality assurance of a wide range of building components.
Our testing services provide you with significant competitive advantages: from ensuring the standard compliance of your products to optimizing sound insulation, we help you achieve the highest quality standards. With decades of experience and cutting-edge measurement technology, our team supports you in developing innovative solutions and meet market requirements – an investment in your product quality and customer satisfaction.
How can we assist you? Learn more about our range of services or send us an e-mail.
| Measurement | Sound insulation and flanking sound transmission |
| Standards | DIN EN ISO 10848, DIN EN ISO 16283-3 |
| Measurement object | Façade elements and prototypes including installations, Window elements, sliding door elements, noise barriers (gabions, etc.), exterior building elements |
Technical data
| Floor area (2 rooms) | 18.4 m² and 2.4 m² |
| Room volume (2 rooms) | 71 m³ and 87 m³ |
| Doors (H × W) | 1.99 × 0.86 m and 2.02 × 0.95 m |
| Outward opening (H × W) | 10.05 m x 3.53 m (2 rooms) 3.57 m or 3.81 m x 2.71 m (standard opening, 1 room) 4.12 m x 3.53 m (maximum opening, 1 room) |
Special features
| Max. sound reduction (related to the size of test sample) | R'max,w= 71 dB |
| Vibrational isolation of the test rooms | To suppress the flanking transmission, a surrounding joint is installed between the source and receiving room. |
More information
- Delivery and direct installation of large test samples via truck-mounted crane
- Rolling gate to close the test opening (weather protection)
