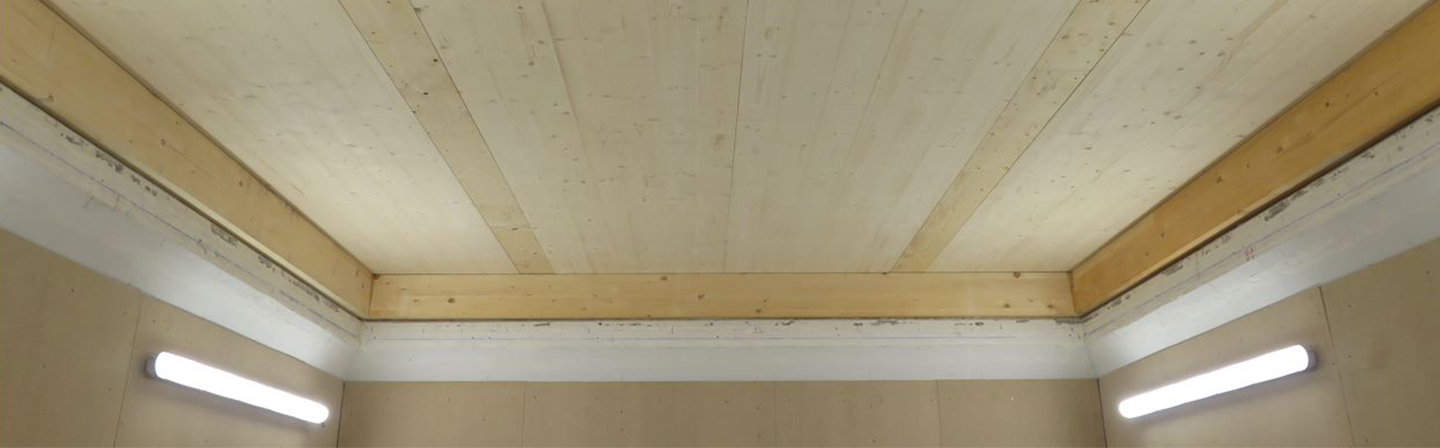

Solid wood ceiling with solid wood raised floor in ceiling test facility. View of reception room
Airborne and Impact Sound Insulation of Ceilings and Roofs in Timber and Lightweight Construction
Acoustics
Impact sound measurement in timber construction for optimal sound insulation
The ceiling test stand at Fraunhofer IBP is specifically designed to measure airborne and impact sound insulation, as well as the impact sound reduction of timber structures such as timber beam ceilings, solid wood ceilings, and lightweight ceilings. With two adjacent reverberation rooms, separated by a variable ceiling support, the test stand enables analysis according to DIN EN ISO 10140. Flanking transmissions are minimized by additional linings, while standardized tapping machines and alternative impact sound sources, such as fitness weights or Japanese rubber balls, are used for measurements. The test stand is ideal for use in residential buildings, for industrial roofs, and innovative construction projects. In addition to low-frequency impact sound, walking noise and structure-borne sound can also be analyzed to ensure comprehensive acoustic optimization.
Our tests provide precise data for optimizing the impact sound insulation of your products – from floor coverings to complex timber constructions. With our support, you can meet the highest quality standards, improve living comfort, and set new benchmarks in building acoustics. Rely on the expertise of Fraunhofer IBP to make your projects a success both acoustically and economically.
How can we assist you? Learn more about our range of services or send us an e-mail.
| Measurement | Impact sound and impact sound insulation |
| Standard | DIN EN ISO 10140 |
| Measurement object | ceilings in timber and lightweight construction, floating screeds, ceiling coverings, floor coverings, timber beam ceilings, flat roofs, sanitary installations in timber construction |
Technical data
| Floor area and object size | 18 m² |
| Room volume (2 rooms) | 70.6 m³ and 50.0 m³ |
| Entrance doors (H × W) | 2.18 × 0.83 m and 2.02 × 1.95 m |
| Size of test samples | 18 m², variable height |
Special feature
| Impact sound insulation and walking sound | Apart from the impact sound in the receiving room the noise generated in the sending room (walking sound) can be measured and weighted. |
Special Features:
- Walking noise, low-frequency impact sound in timber construction.
More information
- Circumferential console for supporting a partition ceiling
- Timber beam ceiling Type 1 according to DIN EN ISO 10140 available
- Solid timber ceilings
- Hybrid timber-concrete ceilings (HBV ceilings).
Measurement of the sound insulation of a wooden ceiling in the ceiling test facility.

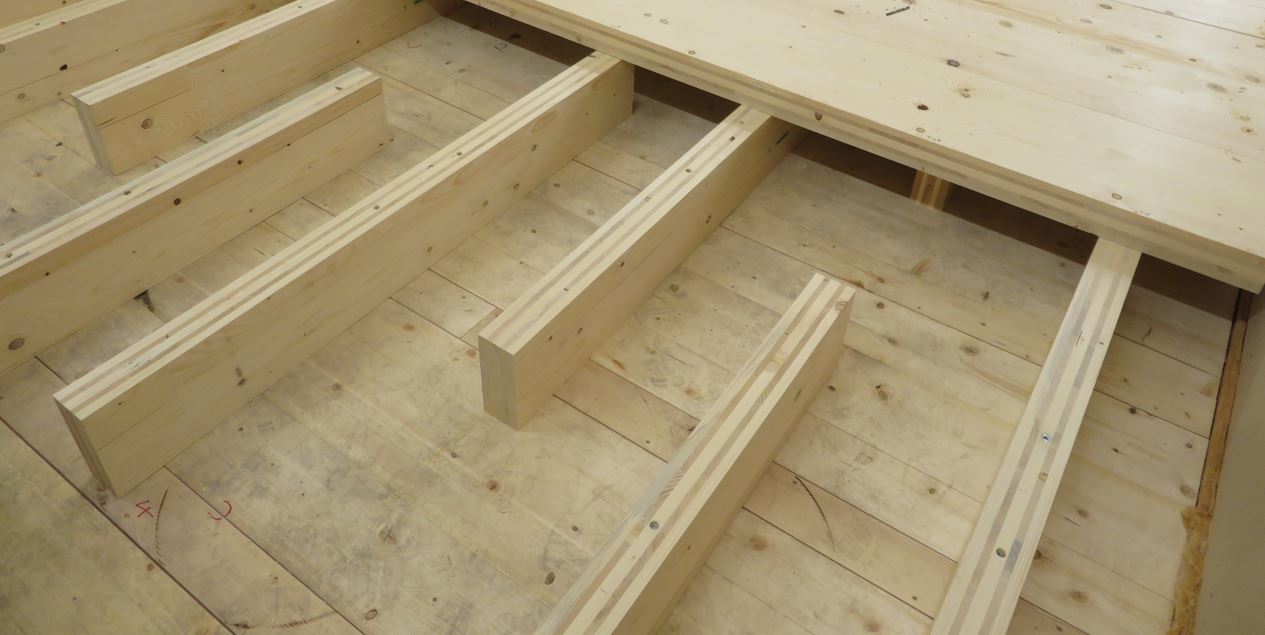

Solid wood ceiling with solid wood raised floor in ceiling test facility. View of broadcasting room.
