Efficiency House Plus in Berlin

Ceremonial handover of keys
© Bundesministerium für Verkehr, Bau und Stadtentwicklung
Ceremonial handover of keys to the opening of the Efficiency House Plus: (from left to right) Federal Chancellor Dr. Angela Merkel, Prof. Gerd Hauser, Federal Minister Dr. Peter Ramsauer and Prof. Werner Sobek.

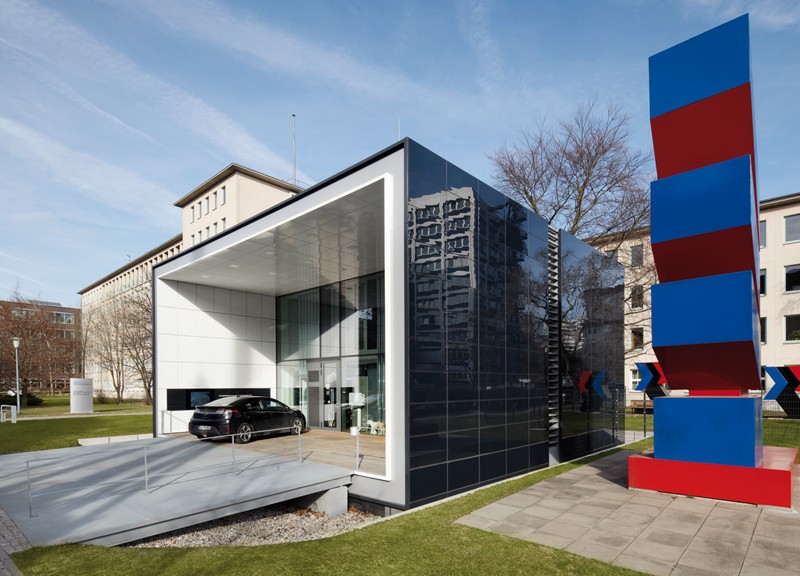

Efficiency House Plus Berlin
© ZEBAU GmbH / Jens Gebhardt
The entrance side, the "showcase" and also the charging station of the Efficiency House Plus.
Efficiency House Plus with Electric Mobility - Hendricks
© BMUB / Sascha Hilgers
Federal Minister Dr. Barbara Hendricks visits the Berlin model project "Efficiency House Plus with Electric Mobility

The German Federal Ministry for Housing, Urban Development and Building (BMVBS) has launched the follow-up model of the Plus Energy House as part of its research on construction and electric mobility: “Efficiency House Plus with Electric Mobility”.

Based on the design conceived by the University of Stuttgart’s Institute for Lightweight Structures and Conceptual Design (ILEK), which emerged as winner of the architecture and university competition held in cooperation with the engineering group Werner Sobek in 2010, the approximately 130 m2 building was erected in a central location in Berlin. The building not only generates the energy required to run it, but also generates an energy surplus that can be used to operate electric vehicles or be fed into the grid.

To verify the achievement of this ambitious project goal, the building was tested under real conditions. Since March 2012, the model house has been occupied for about a year at a time by two families of four, who also used the electric vehicles provided. In addition to the extensive validation measurements (only German) carried out by Fraunhofer IBP, further scientific studies were also conducted on the house. At the same time, proposals on energy management right up to electric mobility are also being submitted. To this end, synergies between new building concepts and transport concepts (Electric House and Electric Mobility) are being assessed for their sustainability, suitability for everyday use and marketability.

After the second test family has moved out, the house will serve the public as a display, information and event platform for social research discussions. Visitors are invited to follow the energy footprint of the building on the monitors and displays integrated into the section of the house that is open to the public, the so-called “showcase”, to learn about the house of the future and perhaps even gain ideas for constructing their own house.



Further Information:

Internet platform of the Efficiency House Plus model project in Berlin (only German)

Annotated series of pictures in the n-tv media library “Wissen" (only German)

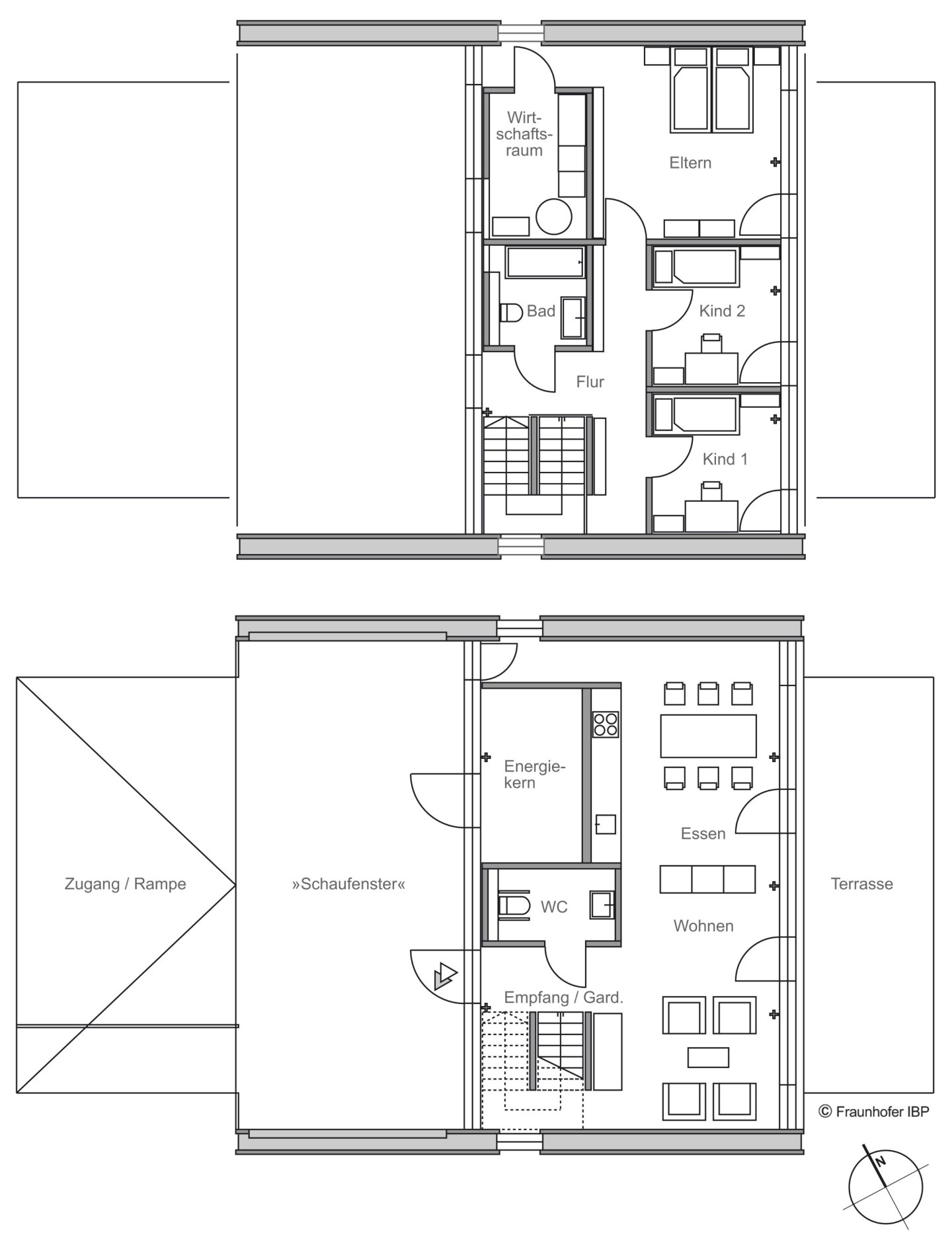

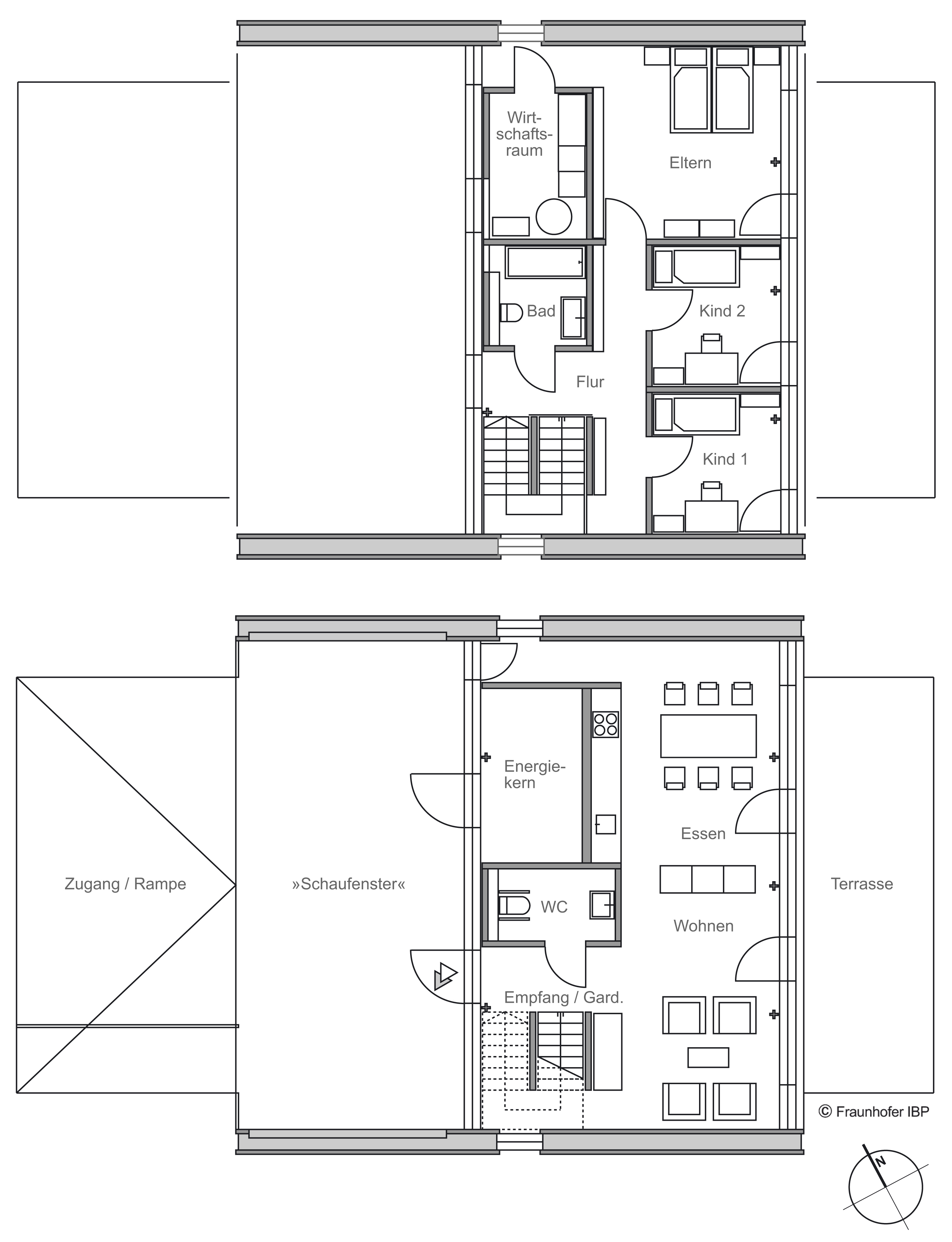

Efficiency House Plus Berlin - Floor plan
© Fraunhofer IBP
Ground floor (below) and upper floor plan of the model building.

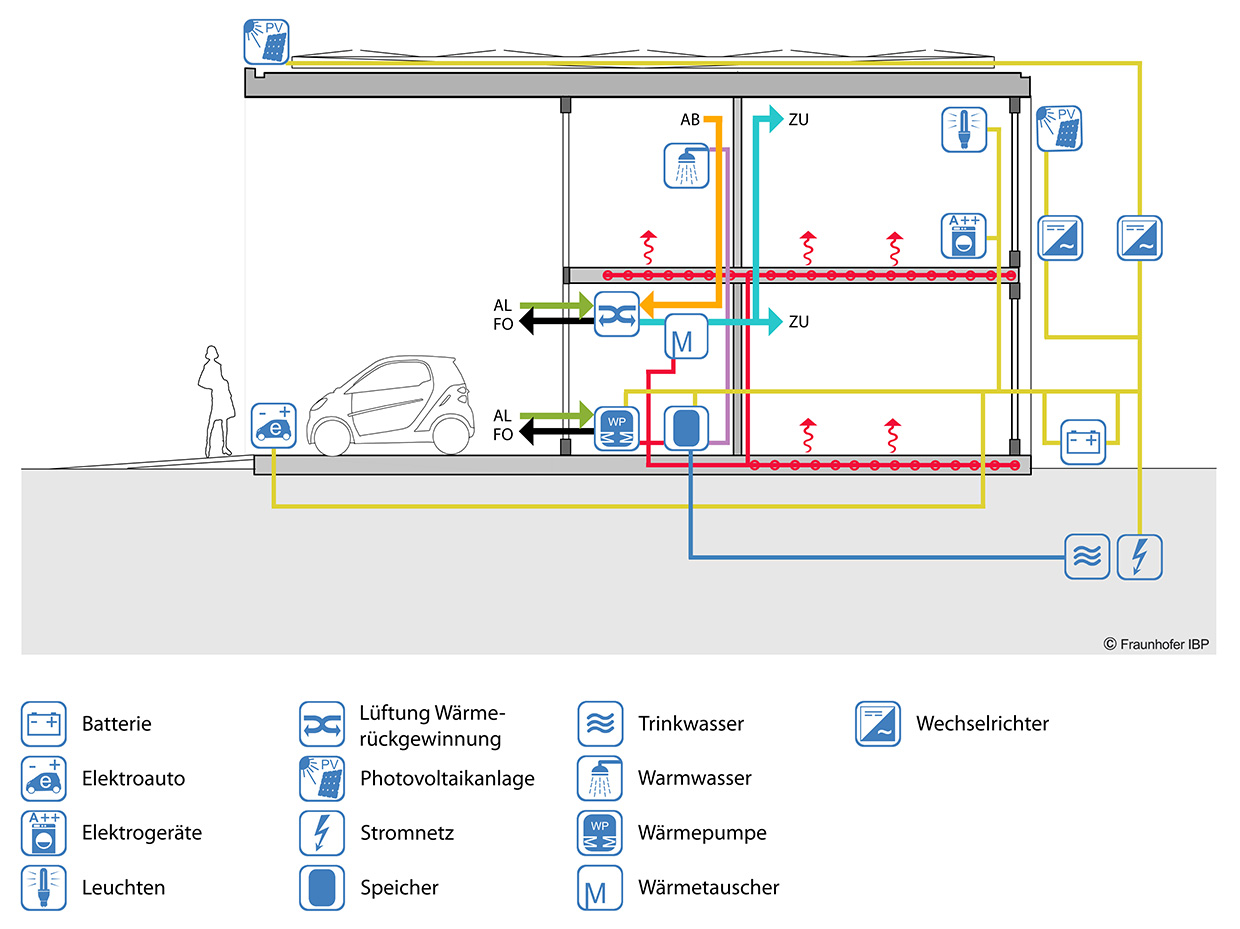

Efficiency House Plus Berlin
© Fraunhofer IBP
Longitudinal section through the model building and schematic representation of the applied plant technology.

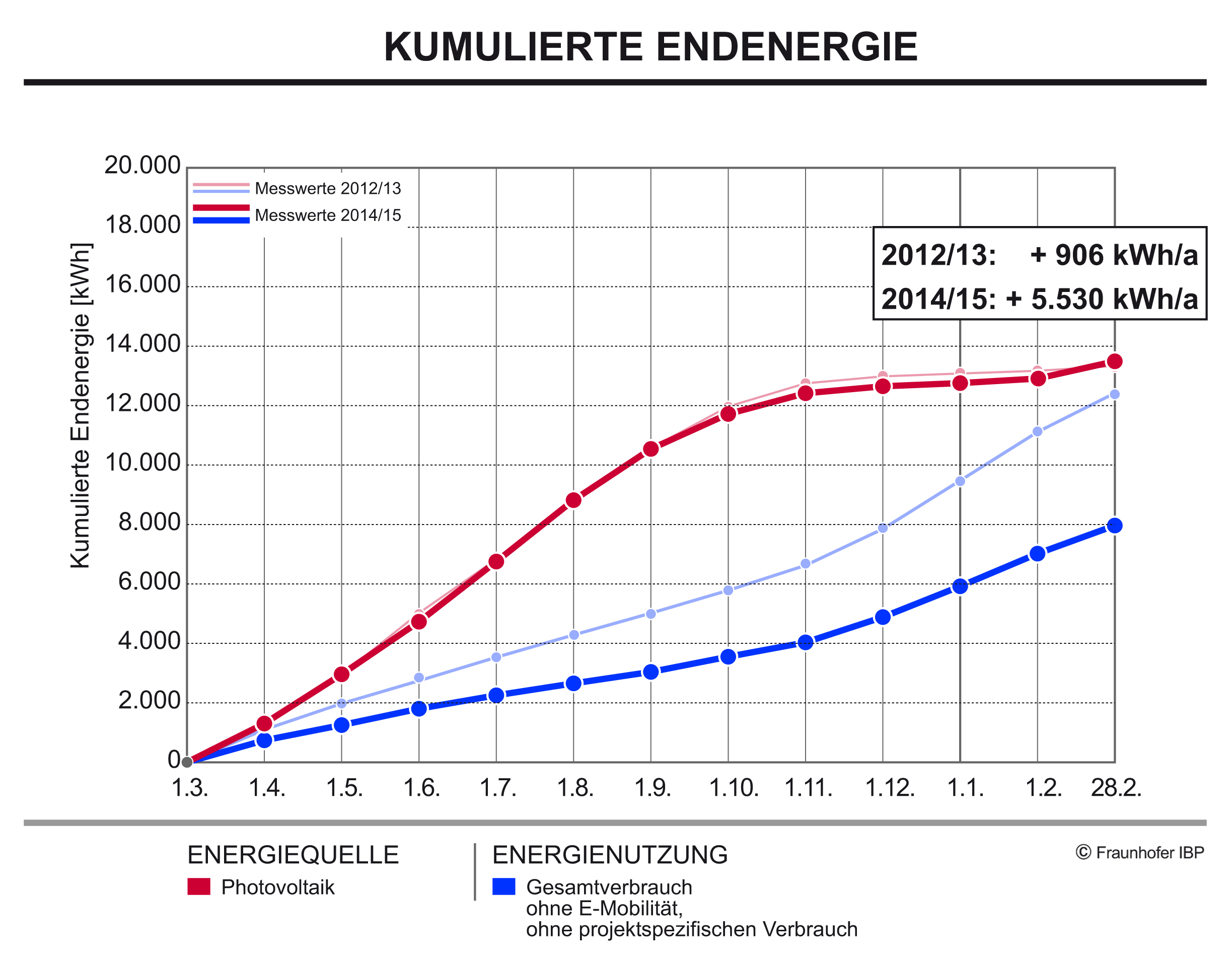

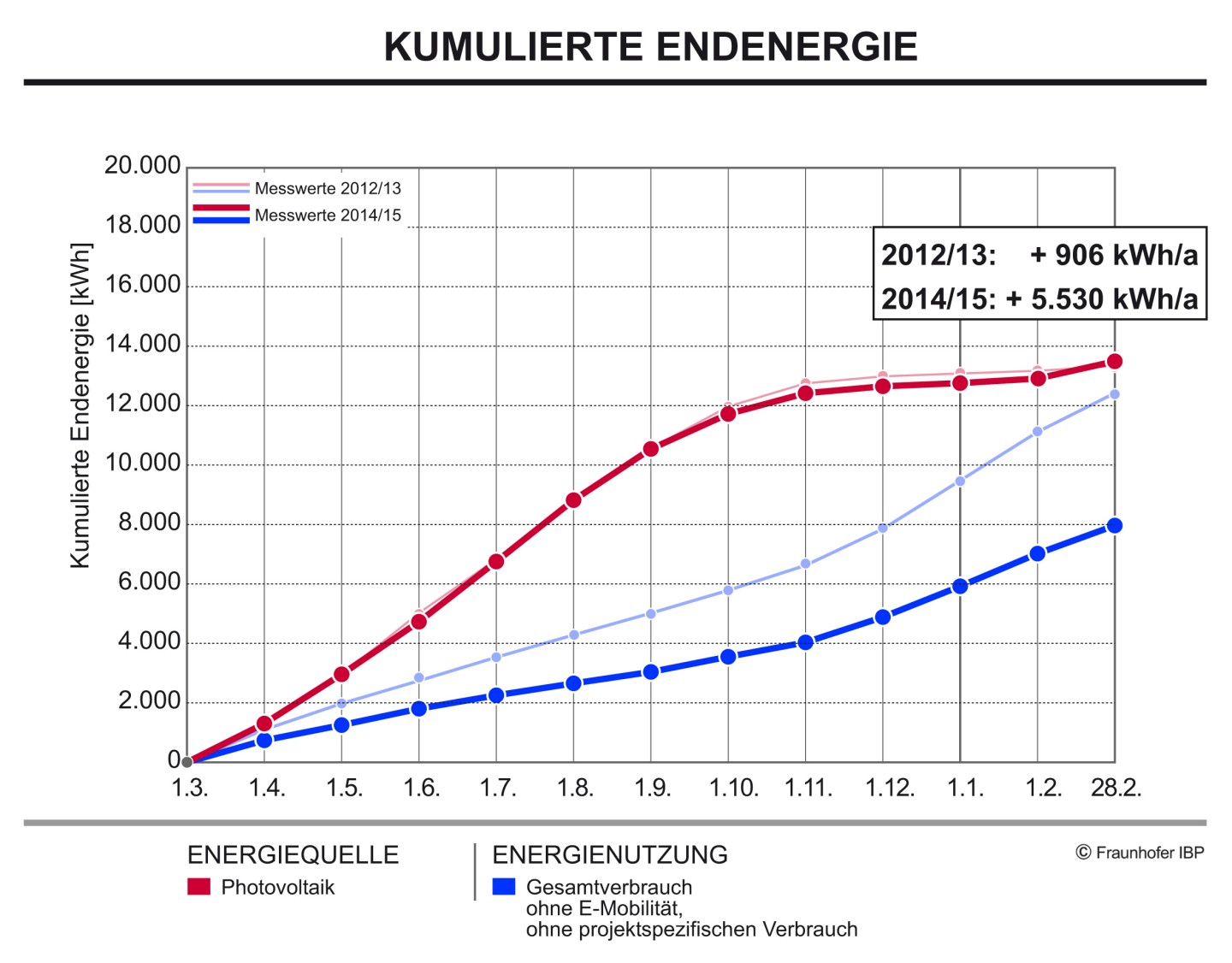

Representation of the energy surplus on the basis of the "cumulative final energy"
© Fraunhofer IBP
Representation of the energy surplus on the basis of the "cumulative final energy" from the two measuring periods in which the building was occupied by a test family.
