Sound insulation in a wall test laboratory
Acoustics
Customized Sound Insulation for Every Wall Construction

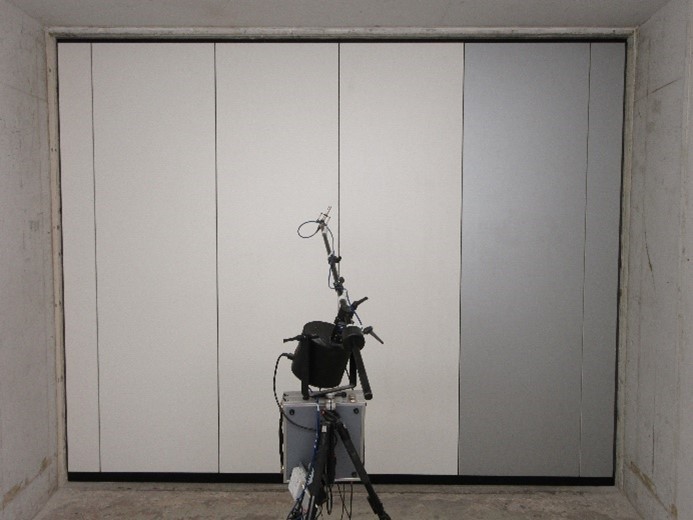

The P6 wall test stand at Fraunhofer IBP provides the ideal platform for determining the sound insulation of a wide range of wall constructions, including glass partitions, noise barriers and mobile walls. Measurements are carried out in accordance with DIN EN ISO 10140-2, using cladding shells that reliably suppress flanking transmission. The flexible test opening and integrated Halfen channels enable quick assembly and easy adaptation to specific requirements. Whether for cinemas, offices, or other applications, the test stand delivers results that enable profound acoustic optimization. Equipped with state-of-the-art technology and accessible infrastructure, the P6 test stand is designed for complex projects and innovative construction solutions.
By collaborating with our experts, you benefit not only from precise measurement technology, but also from our extensive experience in acoustics. We help you optimize your products, meet the highest standards, and enhance your competitiveness. Our testing builds trust and ensures quality – the perfect basis for your success in the market.
How can we assist you? Learn more about our range of services or send us an e-mail.
| Measurement | Sound insulation |
| Standards | DIN EN ISO 10140 |
| Measurement objects | Movable walls, glass walls, folding partitions, noise barriers and screens |
Technical data
| Floor area (2 rooms) | 16.73 m² and 20.89 m² |
| Room volume (2 rooms) | 50.82 m³ and 62.64 m³ |
| Entrance doors (H × W) |
1.990 × 0.835 m and 2.92 × 4.25 m |
| Size of test samples (H × W) | 2,93 m × 3,67 m |
Special feature
| Max. sound reduction (related to the size of test sample) | R'max,w = 77 dB |
More information
Halfen-rails for quick and easy installation of movable wall systems
